MABOR

DWIZ MABOR

DWIZ MABORDWIZ MABOR
DWIZ MABOR

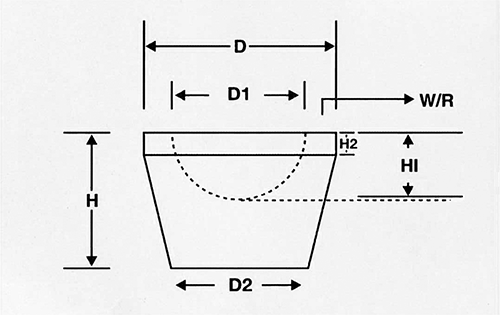

  • D : Diameter of Cupel

  • D1 : Diameter of Cup top Portion

  • D2 : Diameter of Base of Cupel

  • H : Height of Cupel

  • H1 : Depth of Cup

  • H2 : Height of Ridge

  • W/R : Width of Ridge

size Outer
Dia		 Dia of
Cup		 Dia of
Base		 Width
of Ridge		 Height
of Cupel		 Depth
of Cup		 Height
of Ridge		 Weight
(Approx)
  D D1 D2 W/R H H1 H2 g
1 22.0 17.5 16.5 2.30 18.4 4.3 5.0 13.0
2X 24.0 19.0 19.4 2.50 16.3 7.0 5.0 13.0
3 26.3 21.3 20.2 2.50 17.0 7.0 5.0 16.5
4 30.4 25.4 19.9 2.50 18.2 7.5 5.0 20.0
4A 27.0 24.0 20.0 1.50 22.0 6.0 7.5 22.0
5 31.6 26.2 21.9 2.70 19.7 7.0 5.0 24.5
6 36.3 26.4 26.1 4.95 21.2 8.5 8.0 37.5
7 39.5 31.2 29.0 4.15 22.0 11.0 6.5 44.5
PM 27.0 23.4 26.8 1.80 24.0 8.0 --- 27.5
6A 40.0 32.7 30.0 3.65 25.4 12.3 6.0 47.5
7A 39.7 31.2 30.0 4.25 28.5 11.8 9.0 59.0
7AL 39.7 31.2 30.0 4.25 28.5 12.3 6.0 55.0
7B 39.7 31.2 30.0 4.25 32.0 11.8 12.5 67.5
7X 39.7 31.2 30.0 4.25 35.0 11.8 15.5 76.0
SA 40.0 30.2 30.0 4.90 25.4 8.7 6.0 54.5
8 44.3 34.2 34.6 5.05 27.1 8.5 9.0 72.5
8A 45.3 38.0 36.9 3.65 35.0 12.5 13.0 100.5
8AM 45.3 34.0 36.9 5.65 35.0 11.5 13.0 105.5
8C 44.8 34.0 35.5 5.40 31.0 12.5 11.0 89.0
8S 44.0 38.0 34.0 3.00 40.0 14.0 13.0 107.0
8Y 42.0 38.0 42.0 2.00 33.0 9.0 ---- 98.0
9 51.0 40.0 42.1 5.50 29.0 10.5 9.0 109.0
9C 51.0 42.0 43.0 4.50 33.5 12.0 5.5 126.0
9F 51.0 42.0 41.0 4.50 40.0 14.0 11.0 138.5
10 60.0 52.6 49.7 3.70 30.2 11.5 11.0 148.5
11 56.8 47.8 48.8 4.50 44.0 14.8 10.0 197.0
11A 56.8 47.8 48.8 4.50 44.0 11.5 10.0 210.0
12 80.2 57.5 62.5 11.35 47.0 16.5 11.0 443.0
12A 80.2 57.5 62.5 11.35 52.5 16.5 16.5 507.0
14 110.0 80.0 88.0 15.00 70.0 24.0 14.0 1187.0
15 150.0 120.0 128.0 15.00 130.0 40.0 25.0 4725.0
PC 254.0 184.7 203.2 34.65 161.64 55.42 32.33 16000.0
